Suspended, Barrel and Vaulted Ceiling Examples
Ceilings come in a variety of shapes and sizes as part of the architecture of your building. But there are a variety of ways to outfit and design them to change the look and feel of the space.
If you don't have a standard flat ceiling, you may think that other shapes are harder to remodel. False. Tin can be added to a variety of ceiling styles to add a touch of elegance and class to a room.
Turn your 5th wall into a visual masterpiece that definitely won't blend into the background.
| Ceiling type | Recommended installation | ATC product | Key benefit |
|---|---|---|---|
| Suspended / drop | Drop-in grid (2×2 ft. standard) | Drop-In Tiles | Panels lock snugly in place; grid can be painted to match tile |
| Barrel vault | Nail-up following the curve, or drop-in grid | Nail-Up Panels | Flexible enough to follow the semi-cylindrical arch |
| Vaulted / cathedral | Nail-up with flat molding and fillers | Nail-Up + M1 Molding | Molding covers odd angles and transition points cleanly |
Suspended Ceilings
Suspended ceilings, also called drop ceilings or a T-bar, are hung below a main ceiling. They are becoming more and more popular in modern design to allow easy connectivity of fixtures like sprinkler heads, lights and speakers.
Our drop-in ceiling tiles fit all standard 2 ft. x 2 ft. grids and have custom edges that sit flush against the grid. Suspended grids can be painted to match the tile color and they come with two clips for the back that puts pressure on the panel to lock it snuggly into place.
Tin Tile Installation Tips
- Paint the T-bar grid to match your tile finish before installation for a seamless look.
- Use the two included clips on the back of each panel to lock it snugly into the grid — no adhesive needed.
- Start from the center of the room and work outward to keep the pattern symmetrical.

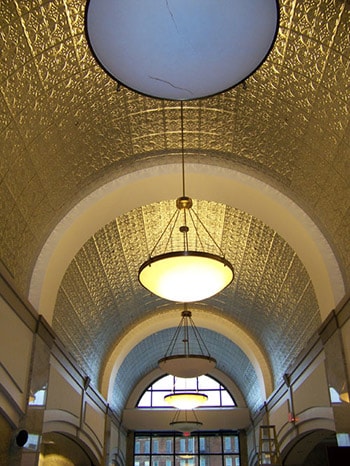

Barrel Vaults
Curved ceilings that are semi-cylindrical in design are formed from a series of arches side by side. Once popular in ancient Egypt and Roman architecture, they are making a comeback in contemporary design.
Our Nailup panels can be fitted to perfectly follow the curve or you can just as easily use a standard drop-in grid for installation.
Tin Tile Installation Tips
- Score the back of nail-up panels every 2 inches to help them flex and follow the curve without cracking.
- Start at the center of the arch and work toward each end to maintain alignment.
- Use flexible crown molding at the transition points where the arch meets the flat wall.
Vaulted Ceilings
A term for arched ceilings or roofs, buttresses are used to supply resistance to these regal designs. The barrel is the simplest kind of vaulted ceiling which dates back to the early civilizations of the Sumerians and Babylonians.
They enjoyed a revival in the Gothic times of old-world Europe and are seeing another resurgence in America today. For cathedral and vaulted ceilings, m1 flat moldings with fillers are a popular choice to cover odd shapes.
Tin Tile Installation Tips
- M1 flat moldings with fillers are the go-to choice for covering the odd angles where panels meet the peak or walls.
- Snap a chalk line along the ridge before you start — it keeps your rows straight on a pitched surface.
- Work in sections from the ridge down to avoid panels shifting before the adhesive or fasteners set.
Whether your ceiling is flat, curved, or vaulted, the right design can completely transform your space. Browse through our gallery of real installations to see how others have turned their ceilings into stunning works of art.
Frequently Asked Questions
Can you install tin ceiling tiles on a barrel vault ceiling?
Yes. Nail-up tin panels can be scored on the back side to follow the curve of a barrel vault. You can also use a standard drop-in grid on a barrel vault if the radius is gradual enough. Start from the center of the arch and work toward each end to keep the pattern aligned.
What's the difference between a barrel vault and a vaulted ceiling?
A barrel vault is a specific type of vaulted ceiling — it's semi-cylindrical in shape, formed by a continuous series of arches side by side. "Vaulted ceiling" is a broader term that includes cathedral ceilings, groin vaults, and other arched or peaked ceiling forms. The barrel is the simplest vaulted shape and one of the most common in residential design.
What kind of ceiling tiles work with a drop ceiling grid?
Our drop-in tin ceiling tiles are engineered to fit all standard 2×2 ft. suspended grid systems. They have custom edges that sit flush against the T-bar grid and include two clips on the back that lock each panel securely in place without adhesive or nails.
What molding do you use for a vaulted or cathedral ceiling?
M1 flat moldings paired with filler pieces are the most popular choice for cathedral and vaulted ceilings. They're designed to cover the odd angles and transition points where tin panels meet peaked or angled surfaces, giving the installation a clean, finished appearance.
Can nail-up tin tiles be bent to follow a curved ceiling?
Yes. Nail-up tin panels are flexible enough to follow gentle curves. For tighter arches, score the back of the panel every 2 inches with a utility knife to help it conform to the shape without buckling or cracking.
Are tin ceiling tiles a good choice for suspended ceilings?
Absolutely. Suspended ceilings are one of the most popular applications for tin tiles because the drop-in installation is straightforward and reversible. Tin tiles also add a level of elegance that standard acoustic ceiling tiles can't match, making them a popular choice for dining rooms, offices, and retail spaces.
How do you cover an arched ceiling with tin tiles?
For arched ceilings, nail-up panels are your best option. Score the back of each panel to allow it to flex with the curve. Begin installation at the center of the arch and work outward symmetrically. Use flexible crown molding at the points where the arch transitions to the flat wall or ceiling surface.
